ACM Panel Fabrication
ACM panel fabrication, CNC machining, custom processing and façade design, backed by our own Uni-Q Panel Design Platform. From idea to form, under one roof.
- Industry Insights
HOW WE FABRICATE
Every order follows the same five stages on our shop floor, from CNC preparation to a loaded skid.
01

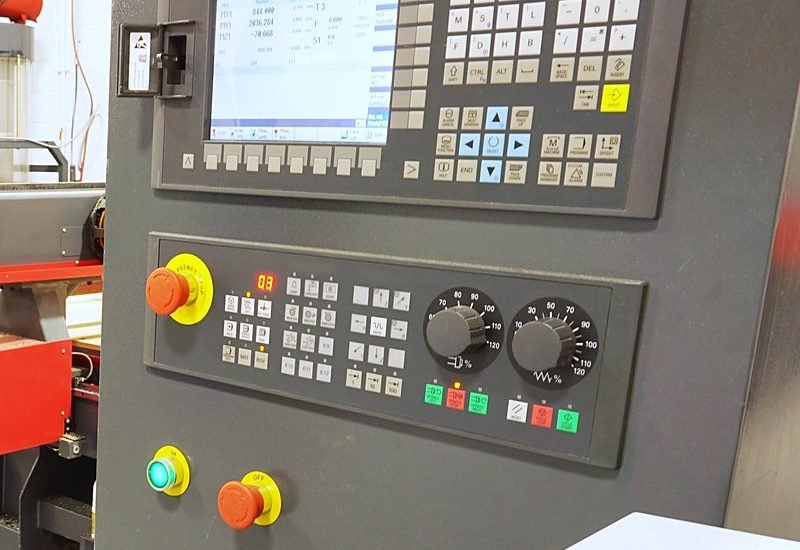

CNC Preparation
02

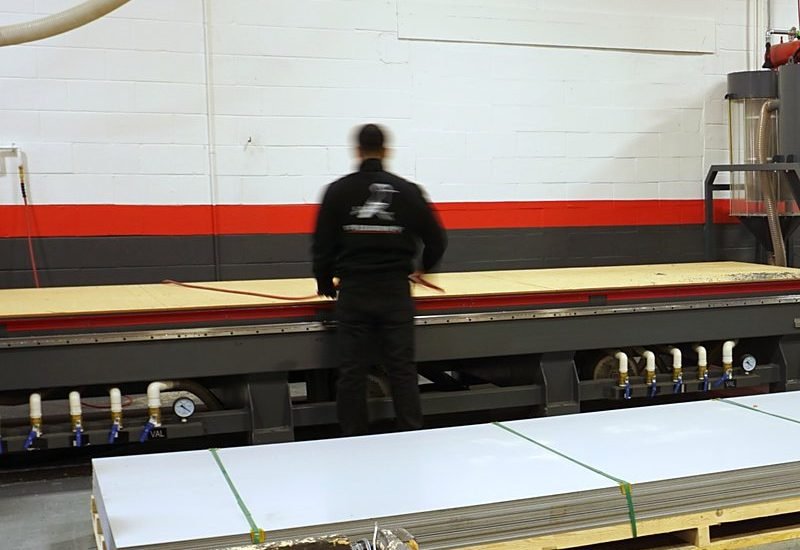

CUTTING & ROUTING
03

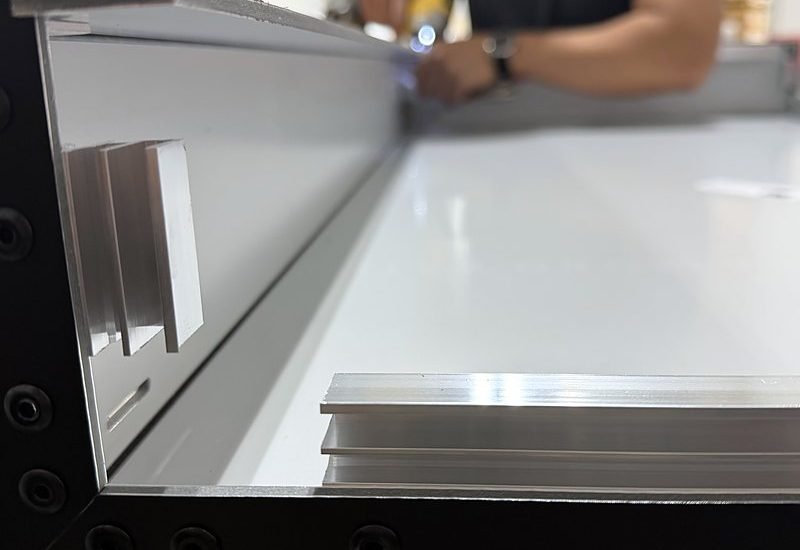

FOLDING & ASSEMBLY
04

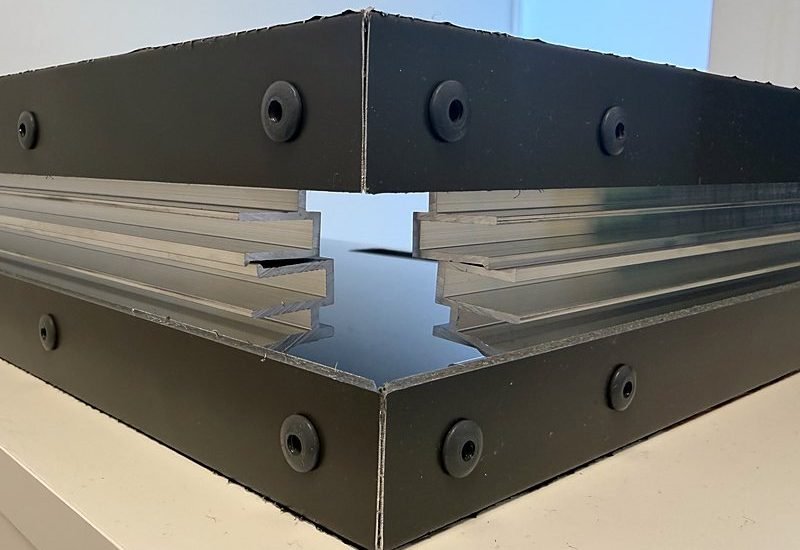

QUALITY CONTROL
05

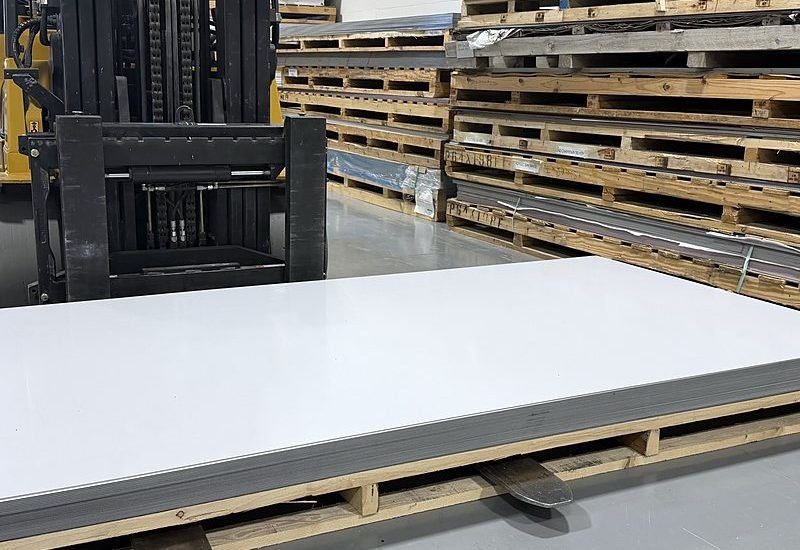

PACKAGING & LOADING
Each panel is inspected for dimensions, extrusion placement, routing and riveting quality, surface condition and correct labeling before being released for shipment.
- SERVICE DETAILS
WHAT TO KNOW BEFORE YOU ORDER
01.
SUITABLE PROJECTS
Our fabrication services support commercial, residential, institutional, retail and custom architectural projects, from small production runs to complete building façades.
02.
COMPATIBLE MATERIALS
We work with ACM from various manufacturers, subject to the selected product’s sheet size, thickness, core type, finish and fabrication requirements.
TECHNICAL LIMITATIONS
Panel dimensions are primarily limited by the available ACM sheet sizes. Before starting your design, confirm the selected manufacturer, available sheet dimensions, material thickness, core type and finish direction. Oversized or custom panels should be reviewed with our team before finalizing the design.
03.
AVAILABLE OPERATIONS
- CNC CUTTING
- ROUTING
- DRILLING
- V-GROOVING
- FOLDING
- CORNER PREPARATION
- EXTRUSION INSTALLATION
- RIVETING
- ASSEMBLY
- LABELING
- QUALITY CONTROL
- PACKAGING
- SKIDDING
- SERVICE DETAILS
WHAT YOU NEED TO PROVIDE
For fabrication-only orders, provide flat-pattern panel files, properly prepared and nested within the selected ACM sheet size. Files should follow the Uni-Q CNC & Fabrication Drawing Template, available in our Resource Library.
DON’T HAVE FABRICATION-READY FILES?

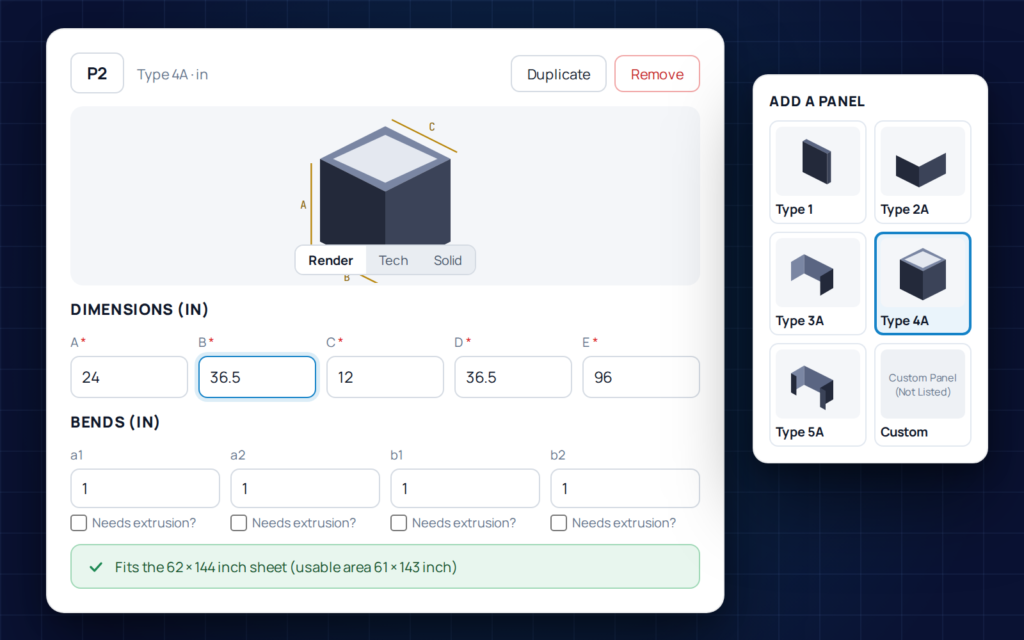

Use our exclusive Uni-Q Panel Design Platform. Enter your panel dimensions and specifications to generate fabrication-ready panel geometry without traditional drafting.
